Name: Ubiquiti - AM-5G19-120
SKU: AM-5G19-120
Price: 469.00 AED
Availability: InStock

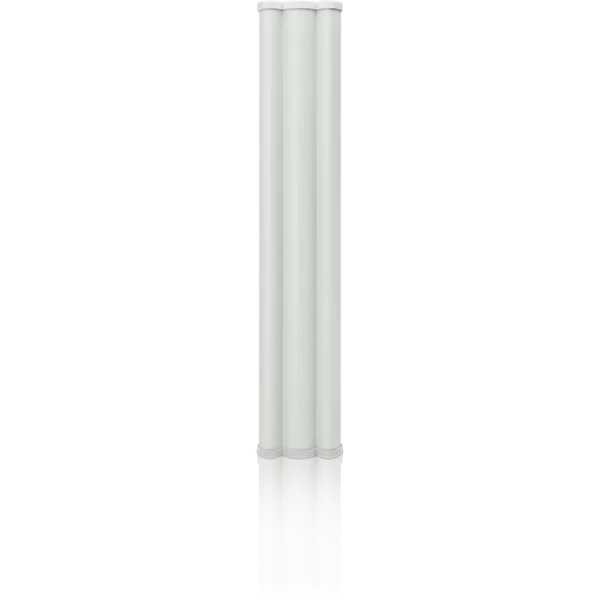

Ubiquiti – AM-5G19-120

SKU: AM-5G19-120

In Stock

AED 469.00

In Stock

Other people want this. 15 people have this in their carts right now.

SKU: AM-5G19-120 Category: ANTENNAS

Description

5 GHz, 120º, 19 dBi or 90º, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.

2×2 dual-polarity performance

Robust mechanical design for outdoor application use

Compatible with Rocket Prism 5AC

Details

Dimensions (mm)	700 x 135 x 73 mm (27.6 x 5.3 x 2.9")
Weight	5.9 kg (13 lb)
Frequency Range	5.15 - 5.85 GHz
Gain	18.6 - 19.1 dBi
HPOL Beamwidth	123° (6 dB)
VPOL Beamwidth	123° (6 dB)
Electrical Beamwidth	4°
Electrical Downtilt	2°
Max. VSWR	1.5:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	89 N @ 160 km/h (20 lbf @ 100 mph)
Polarization	Dual-Linear
Cross-pol Isolation	28 dB Min.
ETSI Specification	EN 302 326 DN2
Mounting	Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
