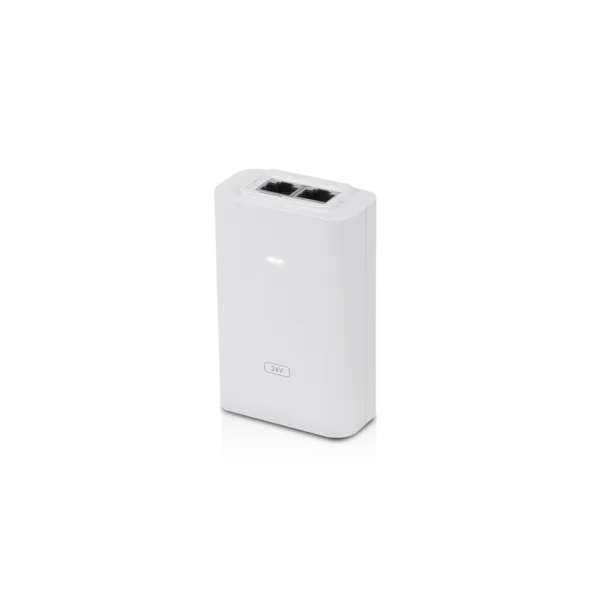

Ubiquiti – POE-24V-24W-G-WH

Description

Model : POE-24-24W-G-WH
Dimensions : 96 x 62 x 35 mm (3.78 x 2.44 x 1.38″)
Weight: 166 g (5.86 oz)
Output Voltage: 24VDC @ 1.0A
LAN Activity Indicator: No
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button: Yes
Rated Voltage: 100-240VAC @ 50/60Hz
Input Current : 750mA @ 90VAC
Inrush Current: <100A Peak @ 25°C Efficiency: 86.2+% Output Ripple: 200mV p-p Switching Frequency : 65 kHz Line Regulation: ≤ 3% Load Regulation: ≤ 5% 2-Pair Powering: Pins 4, 5 (+) and Pins 7, 8 (-) 4-Pair Powering: N/A Operating Temperature: 0 to 40°C (32 to 104°F) Storage Temperature: -30 to 70°C (-22 to 158°F) Operating Humidity: 5 to 90% Noncondensing AC Connector: IEC-320 C6 Data IN / POE: RJ45 Shielded Socket Surge Protection: Difference and Common Mode Clamping Protection: 11V Data, 60V Power Max. Surge Discharge: 1500A (8/20 µs) Power Peak Pulse Current: 36A (10/1000 µs) Data Shunt Capacitance: <5 pF data Response Time: <1 ns Certifications: CE, FCC, IC, UL
