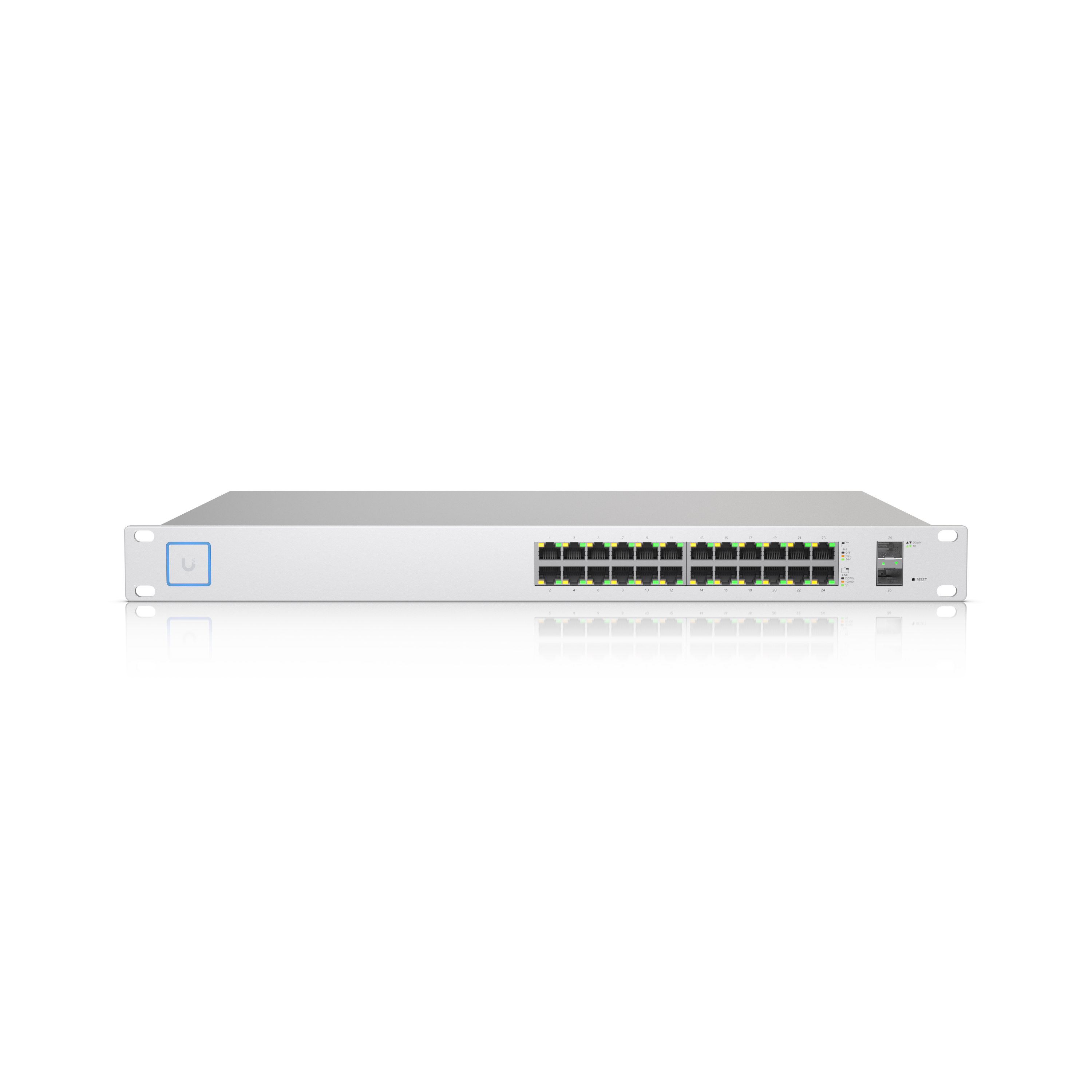

Ubiquiti – US-24-250W

Description

Technical Specifications
Mechanical
Dimensions 485 x 285.4 x 43.7 mm (19.1 x 11.2 x 1.7″)
Weight 4.8 kg (10.6 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
(1) RJ45 Serial port Out-of-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 😎
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 2500W
Supported voltage range 100—240V AC
Max. power consumption Excluding PoE output: 30W
Including PoE output: 250W
Total available PoE 250W
Max. PoE wattage per port by PSE 24V Passive PoE: 17W
PoE+: 34W
Voltage range PoE mode 24V Passive PoE: 20–27V
PoE+: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Sound level*
Fan level 0
Fan level 1
Fan level 2
Fan level 3
9.1 dBr
14.2 dBr
16.8 dBr
21.2 dBr
* Background noise level: 27.5 dBa.
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/Link/Activity
SFP Speed/Link/Activity
