Description

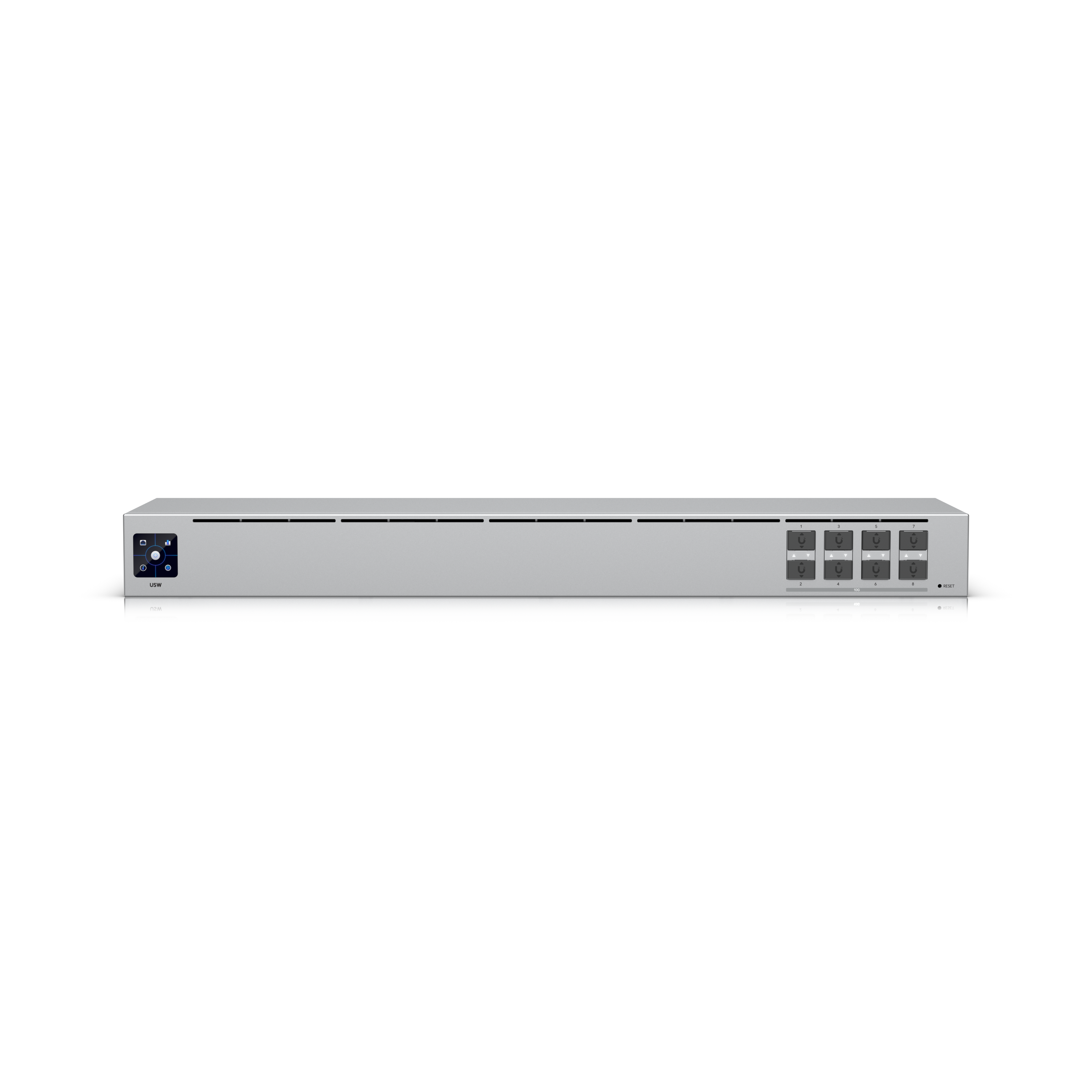

An 8-port, Layer 2 switch made for 10G SFP+ connections.
(8) 10G SFP+ ports
Fanless, silent cooling
| Mechanical | |
|---|---|
| Dimensions | 442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7") |
| Weight | Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) 10G SFP+ ports |
| Total non-blocking throughput | 80 Gbps |
| Switching capacity | 160 Gbps |
| Forwarding rate | 119.04 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Max. number of supported SFP+ modules | UACC-OM-MM-10G: 8 UACC-OM-SM-10G: 8 UACC-CM-RJ45-10G: 4 UACC-CM-RJ45-MG: 4 |
| Services | SMB Layer 2 GbE switch |
| LCM display | (1) 1.3" LCM color touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 5.14.12 and later |
