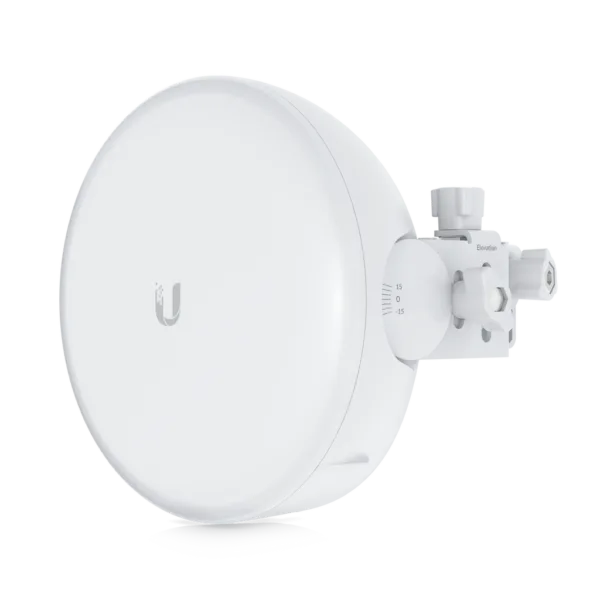

Name: Ubiquiti - GBE-PLUS
SKU: GBE-PLUS
Price: 796.00 AED
Availability: OutOfStock

Description

High-gain 60 GHz radio with a Cassegrain reflector that delivers 1.5+ Gbps throughput with low latency.

1.5+ km link range
1.5 Gbps max. throughput
(1) GbE port

Mechanical
Dimensions	Ø155 x 137 mm (Ø6.1 x 5.4")
Weight	1 kg (2.2 lb)
Enclosure material	UV-resistant polycarbonate, stainless steel
Mount material	Metal
Wind loading	50 N at 200 km/h (11.24 lbf at 125 mph)
Hardware
Processor	Quad-Core ARM® Cortex® A7
Memory	256 MB DDR3
Networking interface	(1) GbE RJ45 port
RF connections	Internal
Max. power consumption	11W
Power method	Passive PoE 2-pairs (4, 5+; 7, 8-)
Power supply	24V DC, 0.5A gigabit PoE adapter (Included)
Supported voltage range	22—27V DC
ESD/EMP protection	Air/contact: ± 24kV
Ambient operating temperature	-40 to 60° C (-40 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	FCC, IC, CE
Software
Operating modes	PtP master or station
Ubiquiti specific features	Integrated 60 GHz radio, discovery protocol
Security	WPA2 AES only
Services	UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Tools	Antenna alignment, discovery utility, traceroute, speed test
Management interface	UISP application (web/mobile)
Minimum software requirements	Any modern web browser/iOS™ or Android™ based smartphone
RF
Operating frequency*	57,000 - 66,000 MHz * Dependent on regional regulations.
Channel bandwidth	2160 MHz
Operating channels	58320, 60480, 62640, 64800 MHz
Beamwidth*	Azimuth: 2° (-3 dB) / 3° (-6 dB) Elevation: 2° (-3 dB) / 3° (-6 dB) *The antenna is only vertically polarized.
Bluetooth	2400 - 2483.5 MHz
Electrical downtilt	0°
LEDs
Power	Flashing white: booting up White: not connected to UISP Blue: connected to UISP
Ethernet	Flashing blue: Ethernet traffic detected
60GHz	Blue: connected
